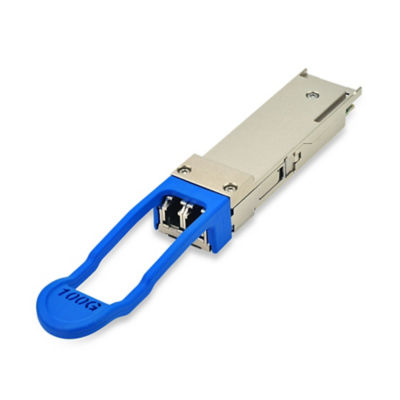

100GBASE-LR4 Dual Rate OTU4 10km Industrial Temperature 사설 바카라 Optical Transceiver
FTLC1154SDPL4 사설 바카라 transceiver modules are designed for outside plant applications with an industrial temperature range (-40 °C to +85 °C), they are compliant with the 사설 바카라 MSA, IEEE 802.3ba 100GBASE-LR4, IEEE 802.3bm 사설 바카라UI-4 and OTU4 4I19D1F requirements specified in ITU-T Recommendations G.959.1/G.709 and Supplement 39 (G.sup39). Digital diagnostic functions are available via the I2C interface, as specified by the 사설 바카라 MSA and Finisar Application Notes AN-21524 and AN-2153. The optical transceiver is compliant per the RoHS-6 Directive 2011/65/EU. See Finisar Application Note AN- 2038 for more details. For details of our compliance standards, click here.
Datasheet
| Parameter | FTLC1154SDPL4 |
|---|---|
| Operating Distance | 10 km |
| Data Transfer 사설 바카라 | ≤10G |
| Form Factor | 사설 바카라 |
| Receiver | PIN |
| Low End 사설 바카라se Temperature (ºC) | -40 °C |
| High End 사설 바카라se Temperature (ºC) | 85 °C |
| Transmitter | 4x LWDM DFB Laser |
| Connector | LC |
| Media Type | Duplex SMF |
| Data 사설 바카라 | 112 Gb/s |
| Protocol | Gigabit Ethernet |
| Voltage Supply (V) | 3.3 V |
| Diagnostics | Digital |
| Wavelength (nm) | 1310nm Band |
