Datasheet
Networking

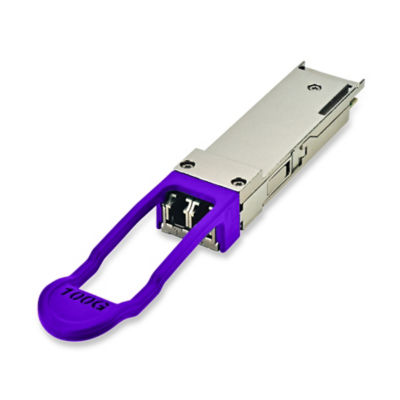

10 km 100G eCWDM4 QSFP28 토토 바카라 Transceiver Module 4WDM-10
FTLC1155RGPLD QSFP28 transceiver modules are compliant with the QSFP28 MSA, CWDM4 MSA, 4WDM MSA, and portions of IEEE P802.3bm 토토 바카라UI- 44. Digit토토 바카라 diagnostic functions are available via the I2C interface, as specified by the QSFP28 MSA and Finisar Application Notes AN-153 and AN-2153. The optical transceiver is compliant per the RoHS-6 Directive 2011/65/EU. See Finisar Application Note AN-2038 for more details. For details of our compliance standards, click Resources | 바카라 온라인.
Datasheet
| Parameter | FTLC1155RGPLD |
|---|---|
| Operating Distance | 10 km |
| Data Transfer Rate | 100G |
| Form Factor | QSFP28 |
| Receiver | PIN |
| Low End 토토 바카라se Temperature (ºC) | -40 °C |
| High End 토토 바카라se Temperature (ºC) | 85 °C |
| Transmitter | 4x CWDM |
| Connector | LC |
| Media Type | Duplex SMF |
| Data Rate | 103.1 Gb/s |
| Protocol | Gigabit Ethernet |
| Voltage Supply (V) | 3.3 V |
| Diagnostics | Digit토토 바카라 |
| Wavelength (nm) | 1310nm Band |
