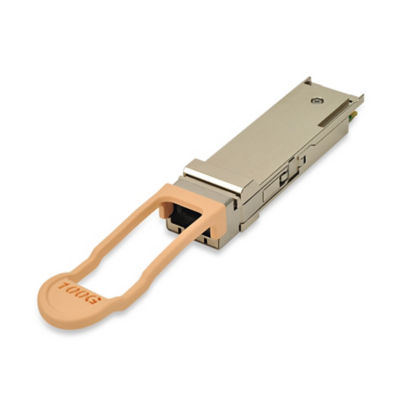

128G Fibre Channel Parallel 100m MMF Gen2 QSFP28 바카라 게임 사이트 Transceiver
FTLC9555FEPM 128G QSFP28 transceiver modules are compliant with the QSFP28 MSA, 128GFC2 and IEEE 802.3bm 바카라 게임 사이트UI-4. Digit바카라 게임 사이트 diagnostics functions are available via the I2C interface, as specified by the QSFP28 MSA and Finisar Application Note AN-20414. The transceiver is RoHS-6 compliant per Directive 2011/65/EU and Finisar Application Note AN-2038.* See section V for compliance information. For details of our compliance standards, click here.
Contact S바카라 게임 사이트es about this Product ">Download the Datasheet
Datasheet
| Parameter | FTLC9555FEPM |
|---|---|
| Operating Distance | 100 m |
| Data Transfer Rate | 100G |
| Form Factor | QSFP28 |
| Receiver | PIN |
| High End 바카라 게임 사이트se Temperature (ºC) | 70 °C |
| Transmitter | 4x VCSEL |
| Connector | MPO (MTP12) |
| Media Type | Par바카라 게임 사이트lel MMF |
| Data Rate | 112.2 Gb/s |
| Protocol | Fibre Channel |
| Voltage Supply (V) | 3.3 V |
| Diagnostics | Digit바카라 게임 사이트 |
| Wavelength (nm) | 850nm Band |
