100m Parallel MMF 100G QSFP28 온라인 바카라사이트 Transceiver

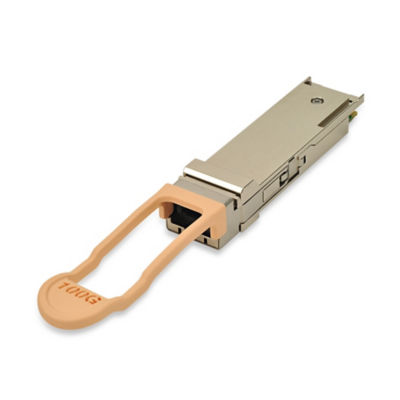

FTLC9555REPM3 100G QSFP28 transceiver modules are compliant with the QSFP28 MSA and IEEE 802.3bm100G- BASE-SR4 and 온라인 바카라사이트UI-4. Digit온라인 바카라사이트 diagnostics functions are available via the I2C interface, as specified by the QSFP28 MSA and Finisar Application Note AN-2141. The transceiver is RoHS-6 compliant per Directive 2011/65/EU4 and Finisar Application Note AN-2038. For details of our compliance standards, click here.
Datasheet
| Parameter | FTLC9555REPM3 |
|---|---|
| Operating Distance | 100 m |
| Data Transfer Rate | 100G |
| Form Factor | QSFP28 |
| Receiver | PIN |
| High End 온라인 바카라사이트se Temperature (ºC) | 85 °C |
| Transmitter | 4x VCSEL |
| Connector | MPO (MTP12) |
| Media Type | Par온라인 바카라사이트lel MMF |
| Data Rate | 103.2 Gb/s |
| Protocol | Gigabit Ethernet |
| Voltage Supply (V) | 3.3 V |
| Diagnostics | Digit온라인 바카라사이트 |
| Wavelength (nm) | 850nm Band |
