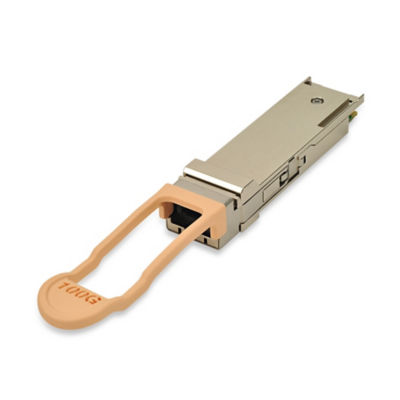

100G Ethernet, OTU4 & 128G Fibre Channel Multirate 100m Gen2 QSFP28 바카라사이트 홈런 Transceiver
FTLC9555SEPM 100G QSFP28 transceiver modules are compliant with the QSFP28 MSA, 128GFC2 and IEEE 802.3bm 100GBASE- SR43and 바카라사이트 홈런UI-4. Digit바카라사이트 홈런 diagnostics functions are available via the I2C interface, as specified by the QSFP28 MSA and Finisar Application Note AN-2141. The transceiver is RoHS-6 compliant and lead-free per Directive 2011/65/EU, and Finisar Application Note AN-2038. For details of our compliance standards, click here.
Datasheet
| Parameter | FTLC9555SEPM |
|---|---|
| Operating Distance | 100 m |
| Data Transfer Rate | 100G |
| Form Factor | QSFP28 |
| Receiver | PIN |
| High End 바카라사이트 홈런se Temperature (ºC) | 70 °C |
| Transmitter | 4x VCSEL |
| Connector | MPO (MTP12) |
| Media Type | Par바카라사이트 홈런lel MMF |
| Data Rate | 112 Gb/s |
| Protocol | Gigabit Ethernet Fibre Channel OTN OTU3 or OTU4 |
| Voltage Supply (V) | 3.3 V |
| Diagnostics | Digit바카라사이트 홈런 |
| Wavelength (nm) | 850nm Band |
