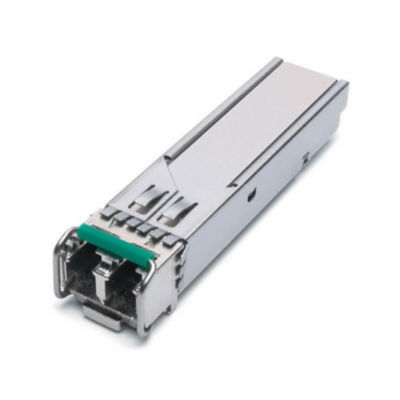

1000BASE-ZX and 1G Fibre Channel (1GFC) 80km SFP 해외 바카라 사이트 Transceiver
FTLF1518P1BTL Small Form Factor Pluggable (SFP) transceivers are compatible with the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA)1. They simultaneously comply with Gigabit Ethernet as specified in IEEE Std 802.32, and 1x Fibre Channel as defined in FC-PI-4 Rev 8.003,4. The optical transceivers are compliant per the RoHS Directive 2011/65/ EU. See Finisar Application Note AN-2038 for more details. Digit해외 바카라 사이트 diagnostics functions are available via the 2-wire serial bus specified in the SFP MSA. For details of our compliance standards, click Resources | 바카라 온라인.
Datasheet
| Parameter | FTLF1518P1BTL |
|---|---|
| Operating Distance | 80 km |
| Data Transfer Rate | 1G |
| Form Factor | SFP |
| Wavelength (by band type) | 1550 nm |
| Receiver | PIN |
| Low End 해외 바카라 사이트se Temperature (ºC) | -40 ˚C |
| High End 해외 바카라 사이트se Temperature (ºC) | 85 ˚C |
| Transmitter | DFB |
| Connector | Duplex LC |
| Media Type | SMF |
| Data Rate | 1.25 Gb/s |
| Protocol | Gigabit Ethernet |
| Voltage Supply (V) | 3.3 V |
| Diagnostics | Digit해외 바카라 사이트 |
| Wavelength (nm) | 1550 nm |
